Details For AJX Groups

Details For AJX Groups

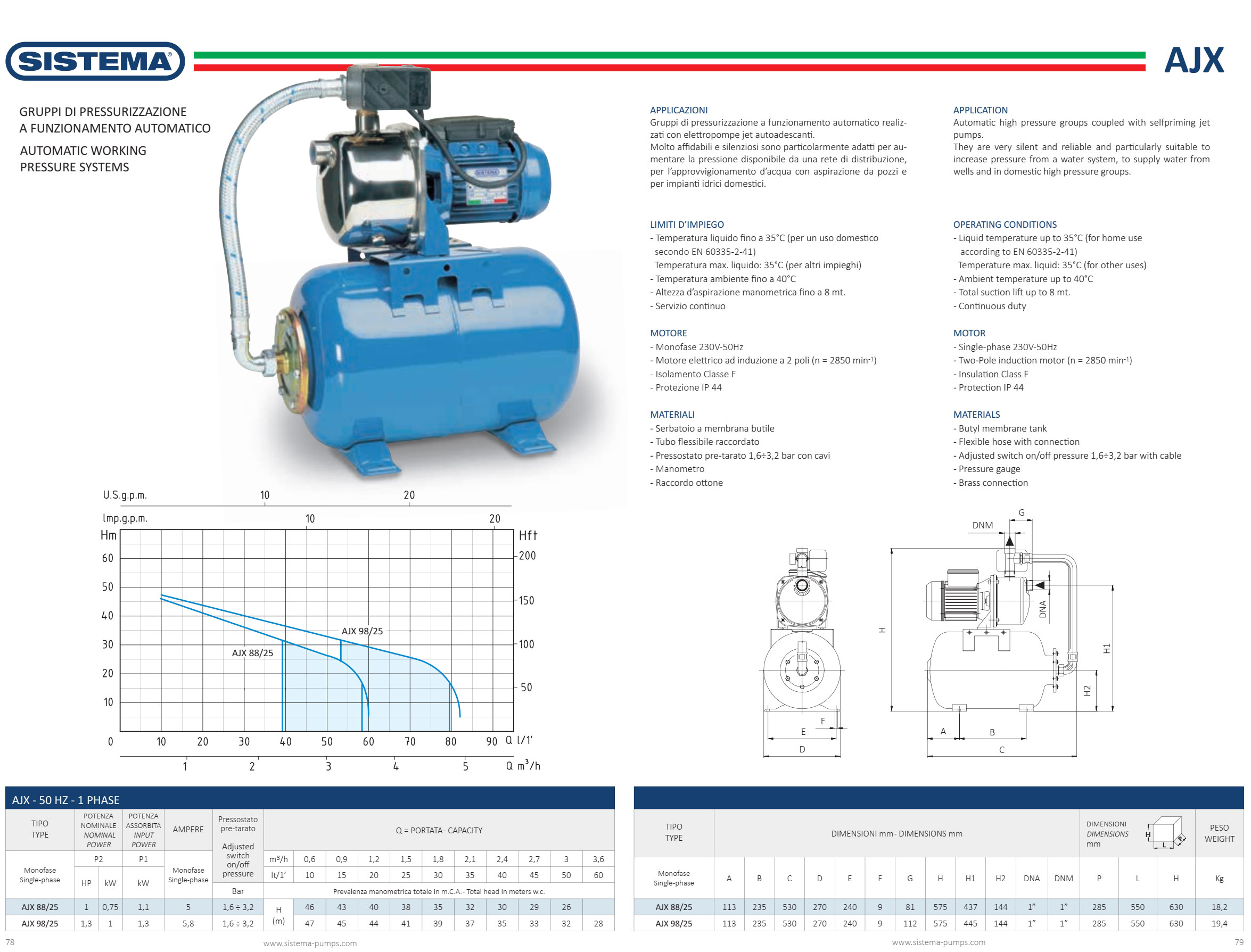

APPLICATION

Automatic high pressure groups coupled with selfpriming jet pumps. They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.

  • AJX 80/22
  • AJX 88/25
  • AJX 98/25

OPERATING CONDITIONS

- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)

  Temperature max. liquid: 35°C (for other uses)

- Ambient temperature up to 40°C

- Total suction lift up to 8 mt.

- Continuous duty

MOTOR

- Single-phase 230V-50Hz

- Two-Pole induction motor (n = 2850 min-1)

- Insulation Class F

- Protection IP 44

MATERIALS

- Butyl membrane tank

- Flexible hose with connection

- Adjusted switch on/off pressure 1,6÷3,2 bar with cable

- Pressure gauge

- Brass connection

Water Pumps Made In ITALY
