OPERATING CONDITIONS

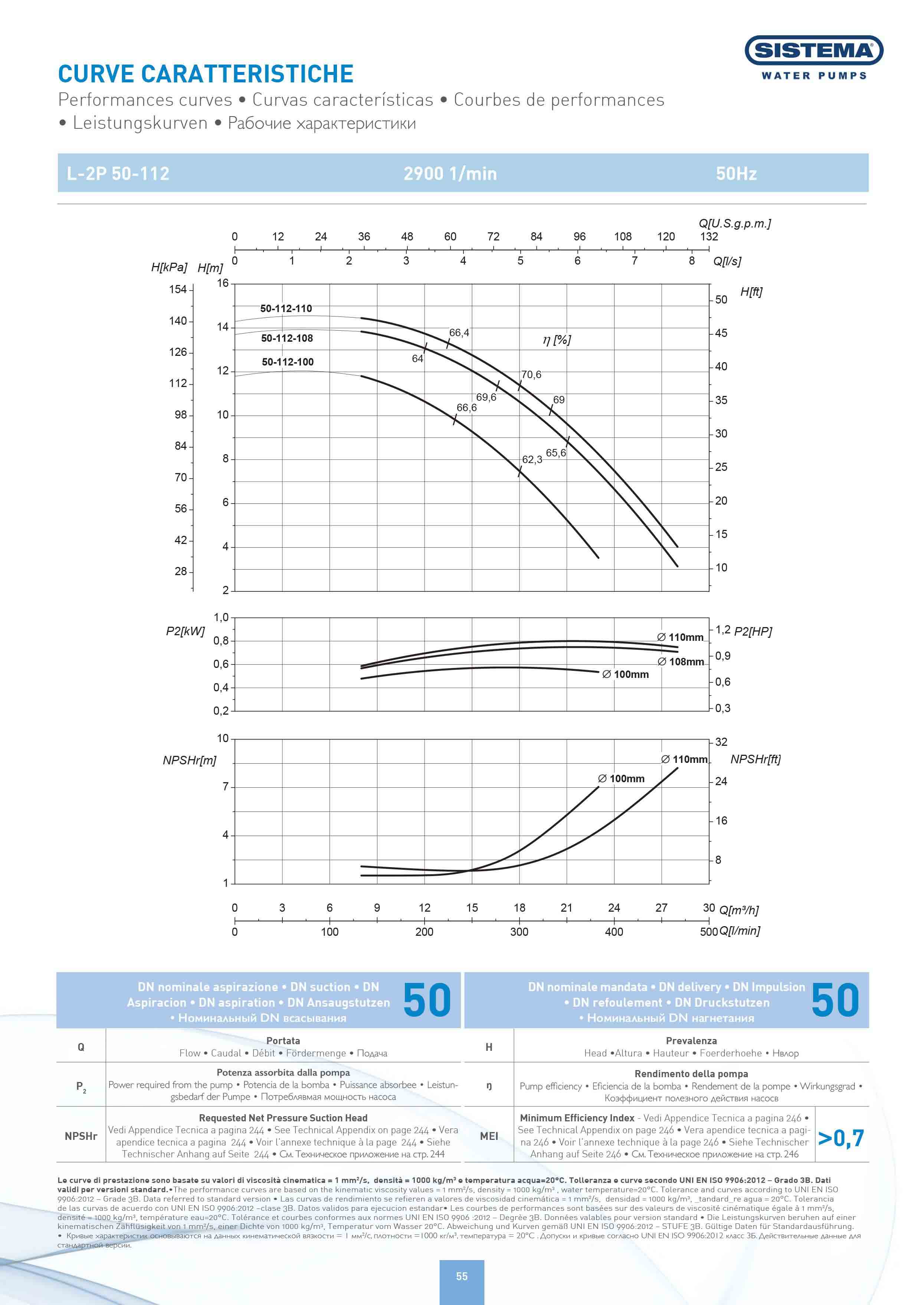

- Performances at 2900 rpm: Max flow :210 m3/h/ Max head: 90m
- Temperature of the pumped liquid: -15°C/+140°C
- Max operation pressure : 16 bar (10 bar for models with threaded outles)
- Clockwise rotation, viewed facing the motor
- Features based on continuous operation
MOTOR
- Single-speed three-phase, with a frequency of 50 Hz or 50-60 Hz
- Speed 2 poles
- Nominal voltage (Un) up to 1 000 V
- With power from 0,18kW up to 90kW
MATERIALS
- pump body : cast iron
- seal holding cover/disc :cast iron
- impeller : cast iron / stainless steel / brass
- shaft : stainless steel
- Mechanical seal : Carbon/ Silicon/ EPDM/ Stainless steel
