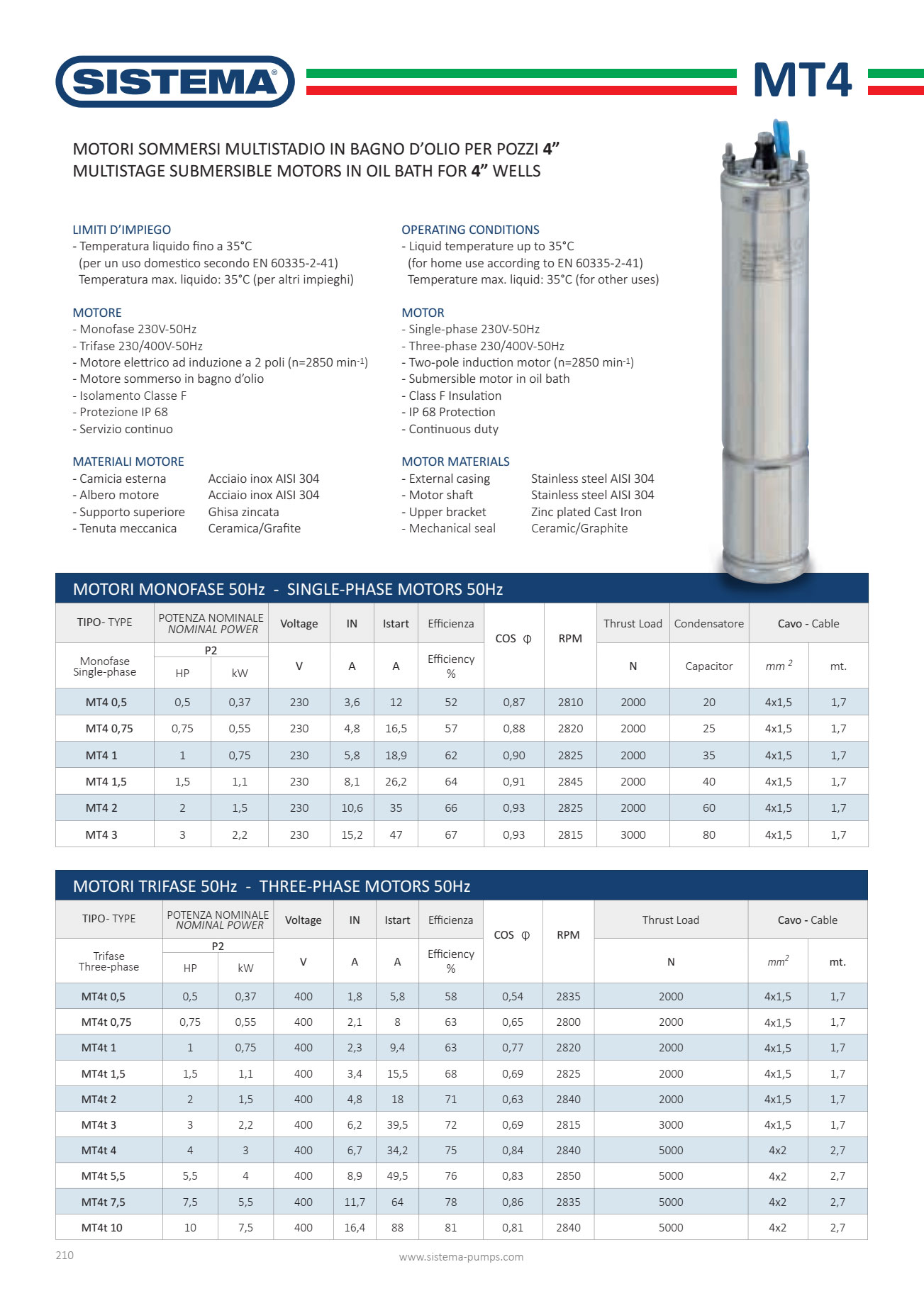

OPERATING CONDITIONS
- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
MOTOR
- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Two-pole induction motor (n=2850 min-1)
- Submersible motor in oil bath
- Class F Insulation
- IP 68 Protection
- Continuous duty
MOTOR MATERIALS
- External casing Stainless steel AISI 304
- Motor shaft Stainless steel AISI 304
- Upper bracket Zinc plated Cast Iron
- Mechanical seal Ceramic/Graphite
