APPLICATION

Centrifugal, monoblock and single-impeller electrical pumps with pump body, with connection to the motor by means of a support unit. With flanged inlet and delivery openings (PN 10 ) and threaded counter-flanges. These machines are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. They are adapt for civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requiring transfer of clean liquids.

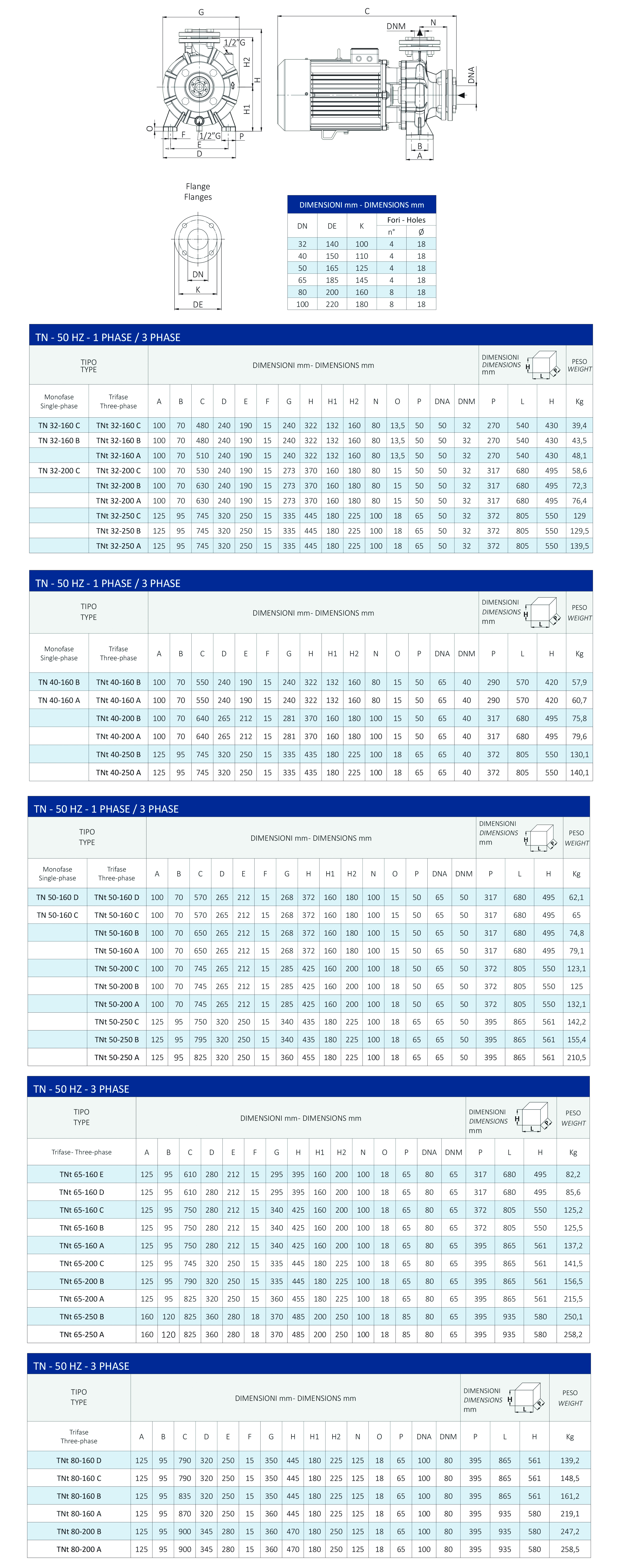

  • TN 32-160 C
  • TNt 32-160 C
  • TN 32-160 B
  • TNt 32-160 B
  • TNt 32-160 A
  • TN 32-200 C
  • TNt 32-200 C
  • TNt 32-200 B
  • TNt 32-200 A
  • TNt 32-250 C
  • TNt 32-250 B
  • TNt 32-250 A
  • TN 40-160 B
  • TNt 40-160 B
  • TN 40-160 A
  • TNt 40-160 A
  • TNt 40-200 B
  • TNt 40-200 A
  • TNt 40-250 B
  • TNt 40-250 A
  • TN 50-160 D
  • TNt 50-160 D
  • TN 50-160 C
  • TNt 50-160 C
  • TNt 50-160 B
  • TNt 50-160 A
  • TNt 50-200 C
  • TNt 50-200 B
  • TNt 50-200 A
  • TNt 50-250 C
  • TNt 50-250 B
  • TNt 50-250 A
  • TNt 65-160 E
  • TNt 65-160 D
  • TNt 65-160 C
  • TNt 65-160 B
  • TNt 65-160 A
  • TNt 65-200 C
  • TNt 65-200 B
  • TNt 65-200 A
  • TNt 65-250 B
  • TNt 65-250 A
  • TNt 80-160 D
  • TNt 80-160 C
  • TNt 80-160 B
  • TNt 80-160 A
  • TNt 80-200 B
  • TNt 80-200 A

OPERATING CONDITIONS

- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)

  Temperature max. liquid: 90°C (for other uses)

- Ambient temperature up to 40°C

- Total suction lift up to 7 mt.

- Continuous duty

MOTOR

- Single-phase 230V-50Hz

- Three-phase 230/400V-50Hz P2 ≤ 7,5 kW

- Three-phase 400/690V-50Hz P2 > 7,5 kW

- Two-Pole induction motor (n = 2850 min-1)

- Insulation Class F

- Protection IP 55

MATERIALS

- Pump body Cast Iron

- Support Cast iron

- Impeller Cast iron

- Shaft with rotor Stainless steel AISI 304

- Mechanical seal Ceramic/Graphite/NBR
