APPLICATION

Submersible drainage pumps with plunged back impeller Vortex type, which allows free passage of suspended parts. Suitable in civil and industrial water systems, for cesspool drainage with oily or chemical liquids, for dirty waters with solid and particularly fibrous particles and for zootechnical waste waters.

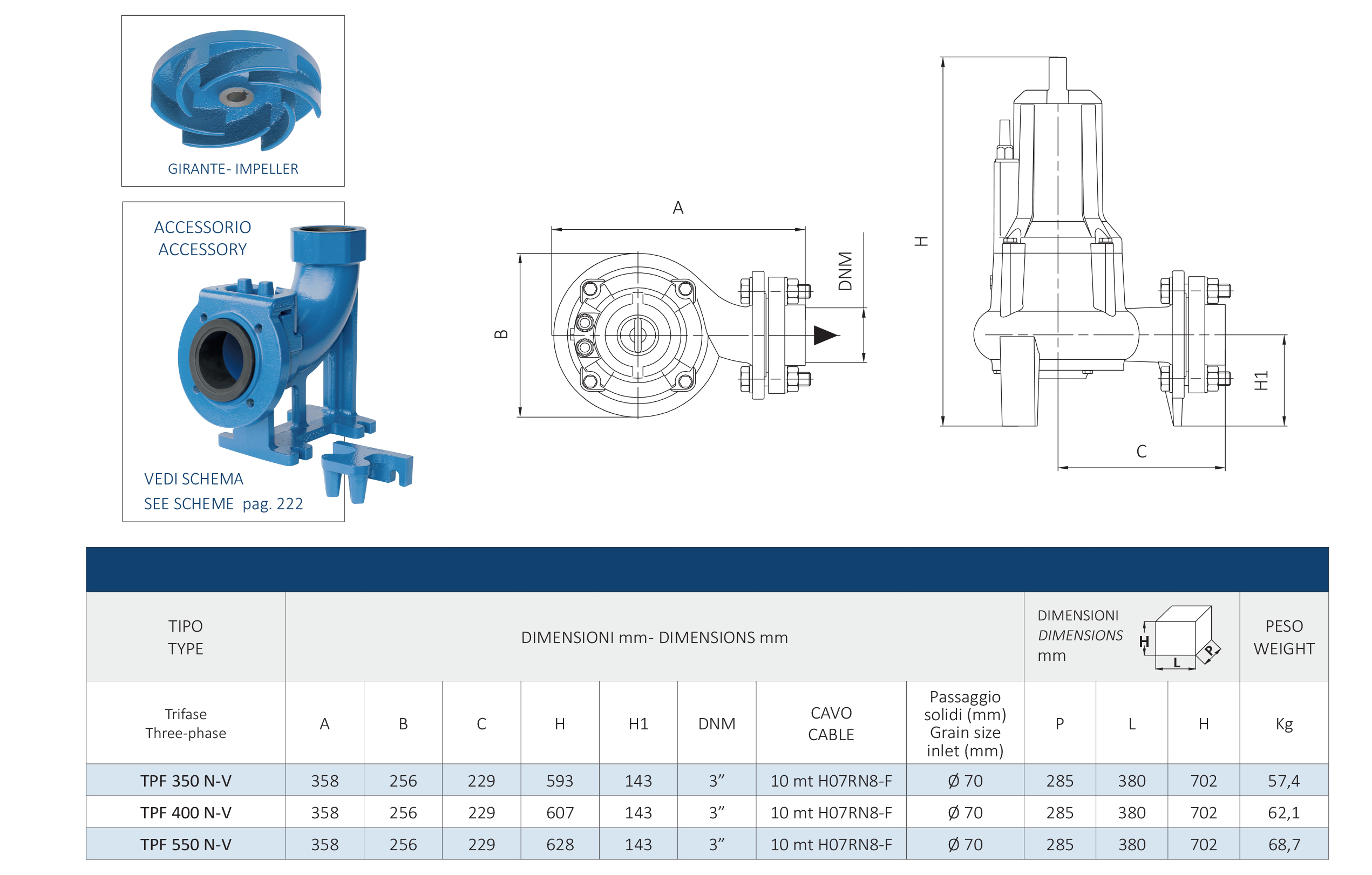

  • TPF 350 N-V
  • TPF 400 N-V
  • TPF 550 N-V

OPERATING CONDITIONS

- Liquid temperature up to 35°C (for home use according to EN 60335-2-41)

  Temperature max. liquid: 50°C (for other uses)

- Maximum immersion depth 10 mt. (for home use according to EN 60335-2-41)

- Grain size inlet Ø 70 mm

- Min. suction level 190 mm

- Continuous duty

MOTOR

- 2 pole induction motor in oil bath

- Three-phase 230/400V-50Hz

- Insulation Class F

- Protection IP 68

MATERIALS

- Motor body Cast Iron

- Pump body Cast Iron

- Impeller Cast Iron

- Shaft with rotor Stainless Steel AISI 304

- Double mechanical seal in oil chamber Ceramic/Graphite/NBR

                                                                 Silicon/Silicon/NBR
